Vertical Machining Centers

Model : VMC :VAi4

Make : Tsugami

Description : Tsugami VA4 machining centre is a compact, high performance vertical CNC machine that offers efficient and precision machining operations. It is equipped with powerful BT40 spindle and 18.5/15/11 kW spindle motor. It has Table size of 850 x 510 mm with X/Y/Z travels of 720 x510x460 mm respectively, giving it the capability to handle most medium sized components. This machine also comes equipped with a 10000rpm spindle allowing for rapid feed rates in order to reduce cycle times as well as maximizing productivity levels on the shop floor. Additionally, this model benefits from advanced thermal compensation technology which provides superior accuracy by compensating any temperature changes when cutting metal components - making it perfect for precision manufacturing applications such as medical instrumentation and aerospace engineering.

VMC Performance series VMC-850 P

Model : VMC-850 P

Make : Jyoti Machine Tools

Description : High dynamics structure width and acceleration 5m/sec,10000 rpm rigid BT 40 spindle with ceramic bearing,Column on fixed base with ribbed stiff wall

VMC-BMV35+

Model :

Make : BFW

Description : The BMV35 series vertical machining center offers great convenience to tier III and tier IV suppliers to OEMs. It efficiently performs milling, drilling and tapping operations. A full fledged +machining center, BMV35 is rigid, requires small installation space, and comes with a precise spindle for sustained high quality performance. Its high speed and feed rate result in cost effective machining.

VMC- JV Series

Model : JV 100

Make : LMW

Description : X Axis-1050 mm, Y Axis- 550 mm, Z Axis- 600 mm, LMW diversified into CNC Machine Tools and is a brand leader in Manufacturing customised products.LMW Foundry makes Precision Castings for industries world over.

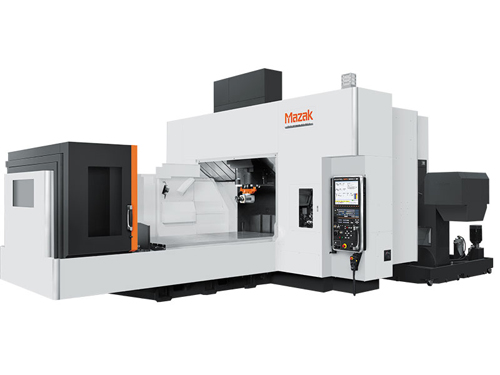

Vertical Machining Center

Model : FJV 5 Face - 60 80 II

Make : Mazak

Description : These high-accuracy, high-rigidity vertical machining centers feature double column construction. They all have high performance spindles and are available with a wide range of table sizes up to 3000 x 2000 mm which is required to machine large size liquid crystal panel production components.

Vertical Machining Centers

Model : VMP 45A

Make : FEELER

Description : Travel: 1100mm(X), 610mm(Y), 600mm(Z) Standard spindle speed 10,000 RPM 10.4" Touch Screen - MITSUBISHI M80/ FANUC Oi MF Standard BT # 40, BT#50 Spindle "Rapid feedrate - X/Y axis: 36M/min, Z axis: 24m/min (Linear guide on X/Y axis, Z axis Box type with Turcite B guide)" ATC (Twin Arm Type) : 24 tools AC spindle motor : 15/ 18.5 KW

VMC- Mycenter-3XD

Model : Mycenter-3XD

Make : Samkrish-KITAMURA

Description : Travel (X, Y, Z): 760 x 510 x 510 mm, Ideal for machining small to medium sized work pieces.Large work envelope within a uniquely compact design.Operator friendly Kitamura Arumatik-Jr. CNC Controller offers up to 16x faster processing speeds.

VMC-VE-1020L3

Model : VE-1020L3

Make : Supreme CNC- Twinhorn

Description : X Axis: 1020 mm, Y Axis: 510 mm, Z Axis: 510 mm, It's Linear guide way provides high speed, superior precision and excellent productivity. All three axes are driven by high power servo motors. Rapid feed rate 30/30/24 M/min (VE-1020L3 with Beta motor).All three axes are equipped with C3 class Ø40 mm pre-tensioned double nut ball screw. All machines will be inspected under VDI3441 regulation before shipment.

VMC- VX-500

Model : VX-500

Make : Yantrang

Description : X: 500 mm, Y: 500 mm, Z: 500 mm, This model has standard features as Harden & Ground EN-9 Box Guide ways, AC Spindle Drive & Servo Drive, ATC : Automatic Tool Changer, Centralized Lubrication System, Electrical Quality Device.

VMC- CVM - 640

Model : CVM - 640

Make : COSMOS

Description : Specification: X- 650 mm, Y- 450 mm, Z- 500 mm, It has standard features as twin arm type automatic tool changer,Oil and coolant separator, heat ex changer for electrical cabinet,portable MPG.

VMC-Victor Plus-545

Model : Victor Plus-545

Make : SPM TOOLS

Description : Specification-X: 510 mm, Y:410 mm, Z: 510 mm, This Victor Plus-545 is High Precision,Highly productive & Competitive price.

VMC- HAWK

Model : HAWK

Make : Sagar Machine Tools

Description : Specification: X: 1000 mm, Y: 500 mm, Y: 500 mm. Sagar's HAWK 1600 BT CNC Bridge Type Vertical Machining Center is a Heavily Ribbed Solid Construction in closed grained Cast Iron, which makes it most suitable for large work pieces in Tools Die and Mould making & for the machining of complex parts. Heavily Ribbed Box type bend construction supporting the double column makes it a highly rigid machine for all types of machining applications.
