Following are "PRESS-BENDING-OTHER MACHINES" offered in INDIA

• MAHARASHTRA • GUJARAT • KARNATAKA • TAMIL NADU • NCR • OTHERS

View "PRESS-BENDING-OTHER MACHINES" verified requirements in INDIA

CNC Shearing Machines

Model : Shear Genius® SG

Make : Prima

Description : Modular design = Two alternative performance levels and possibility to add automation for flexible material flow More capacity, quality and cost-efficiency No skeletons, less punching scrap = savings in raw material No nibble marks Faster return on investment

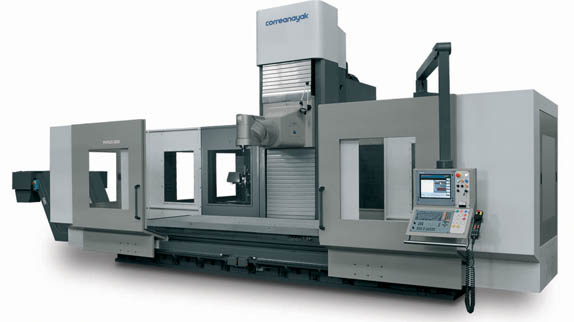

Corea nayak |VH-PLUS (T Shape)

Model :

Make : COREAANAYAK

Description : The VH-PLUS fixed bed-type milling machine is designed for machining medium-sized parts, from 2000 to 4000mm. Moreover, its T-shaped configuration allows it to have cross travels of up to 2500mm. In addition to excellent versatility, it offers high dynamic performances, at a very competitive price and supported by the quality, reliability and experience of Nicolás Correa.

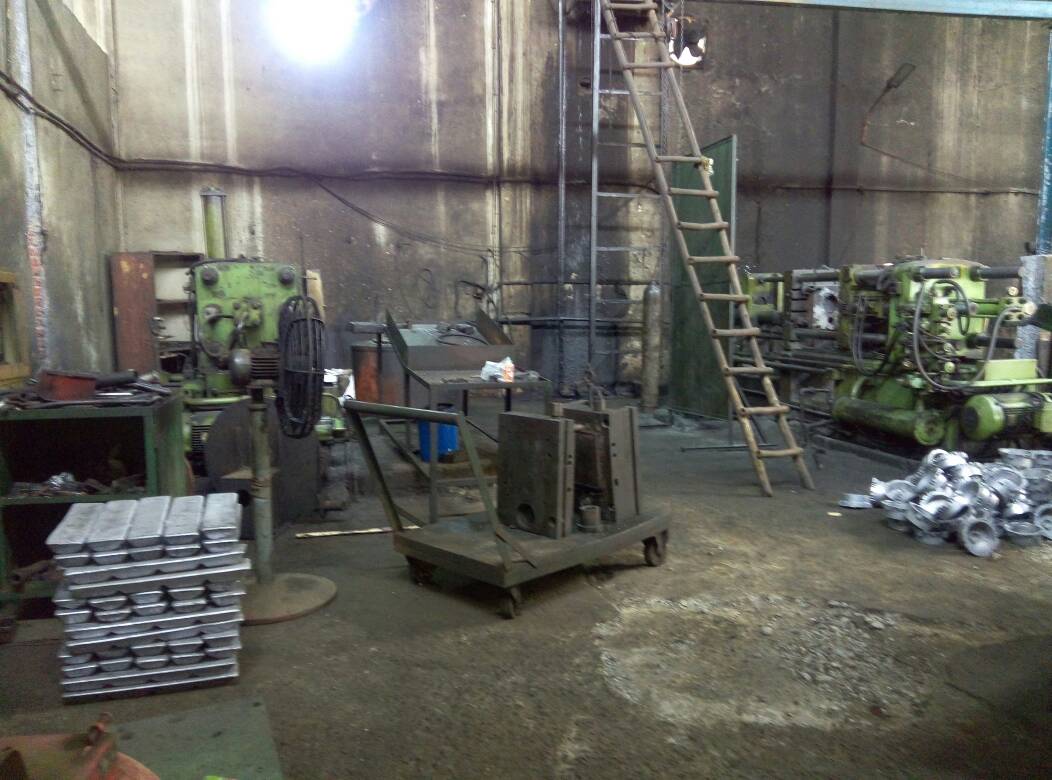

Pressure Die Casting setup

Model : 2005

Make : 2005

Description : Complete running plant for sale with or without order Aluminum Die casting unit comprising of : 120 tonn Technocrat 180 tonn Technocrat 300 tonn Mutual Germany 3 Furnace complete with Blowers , Burner Crucible, with spare Motor Gantry crane Lifter Trolley Compressor Two cooling Towers Chain pulley block Pumps & motors & spare motors Sleeves 19 nos. For 3 machines worth Rs 2lac Fittings pipe lines, over head and under ground tanks Exhausts & fans misc. Etc

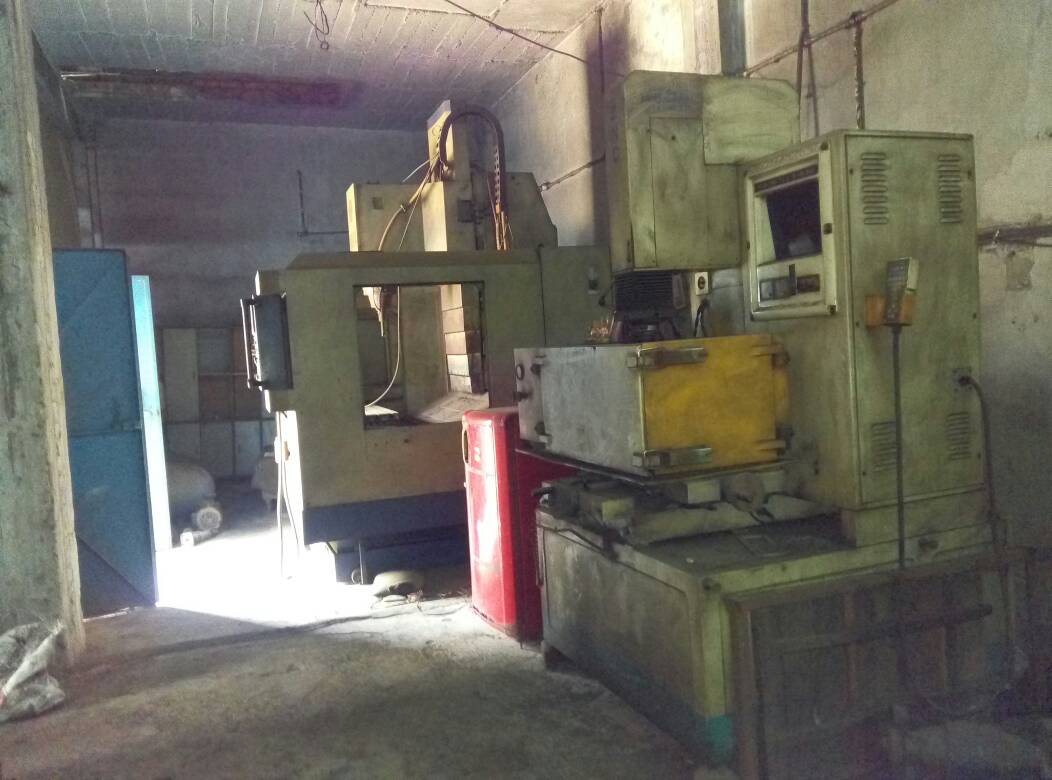

Dies MoldsToolroom

Model : 2005

Make :

Description : Tool Room: VMC 1000x550x600 ZNC EDM 350x500 M1TR milling Lathe Surface Grinder 24" Radial Drill Bench Grinder Compressor Tools Hydraulic Lifter 1 ton Trolley HDS 13 steel blocks & Plates etc 2005 make

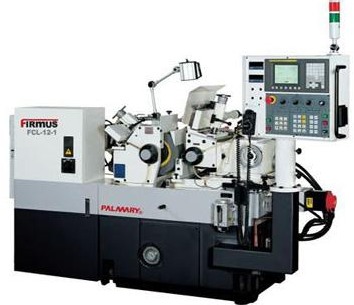

PALMARY CNC Centerless Grinder

Model : FCL-12-1

Make : PALMARY

Description : 1. Rigid Machine Structure (1) The machine structure is manufactured from high quality Meehanite cast iron, heat treated and stress relieved before machining. (2) Slideways are high frequency hardened and precision ground. Maximum material stability for deformation-free and outstanding wear resistance. 2. Hydraulic Cooling Device (1) The lubrication system for bearings on grinding wheel spindle, regulating wheel spindle and hydraulic system are driven by the same hydraulic pump. A cooling fan is equipped for effectively reducing oil temperature. 3. Pressure Switch (1) When starting the grinding wheel and regulating wheel spindle, this pressure switch allows starting only when oil enters into beanings thereby providing safety protection for the spindle bearings. Regulating wheel is driven by AC servo motor. 4. Lubrication System (1) The automatic lubricator provides lubrication to the grinding wheel spindle. (2) All slideways are lubricated by a centralized lubrication system, ensuring proper lubrication and feeding accuracy. 5. Slide Table (1) Upper slide swiveling is easy and accurate to adjust for making the machine suitable for infeeding grinding. Also, it allows grinding for a varied diameter of workpieces. The Upper slide with +5°~ -5° swiveling allows taper grinding by using infeed grinding mode. (2) With thrufeed grinding, the upper slide provides a surface contact adjustment between the workpiece and grinding wheel. Swiveling adjustment range is +5°~ -3°. (3) Dovetailed slideway on the upper slide features smooth and accurate feeding and is lubricated by a centralized lubricator. (4) Lower slide moves on “ ? ” shaped and double-wedged ways. The slideways are hardened and precision ground. They feature smooth movement and properly protected to prevent dust from entering. Micro. feed adjustment unit is 0.001 mm to meet high accuracy requirements for all workpieces. (5) The slideways on the slide unit are coated with Turcite-B for superior wear resistance and smooth movement. 6. Dresser for regulating wheel & Grinding Wheel (For l Axis) (1) Dresser structure is manufactured from alloy cast iron and is hear treated for wear resistance. (2) Hydraulically operated dressing motion. (3) Variable dressing speed. (4) Dresser stand for regulating wheel can be adjusted to suit workpiece requirements, assuring high cylindrical accuracy. 7. Lubrication Oil Recycle (1) Lubrication oil for all slideways flow return through brass tubes to oil collecting tanks. This not only helps to maintain a clean working area, but also meets ISO-14000 environmental protection requirements. 8. Stable Grinding Wheel Auto Dressing Unit (1) The lower slideways of the grinding wheel dressing unit is of a concave dovetail structure. This combines with extra large sideways for greatly upgrading the stability of the grinding wheel unit.

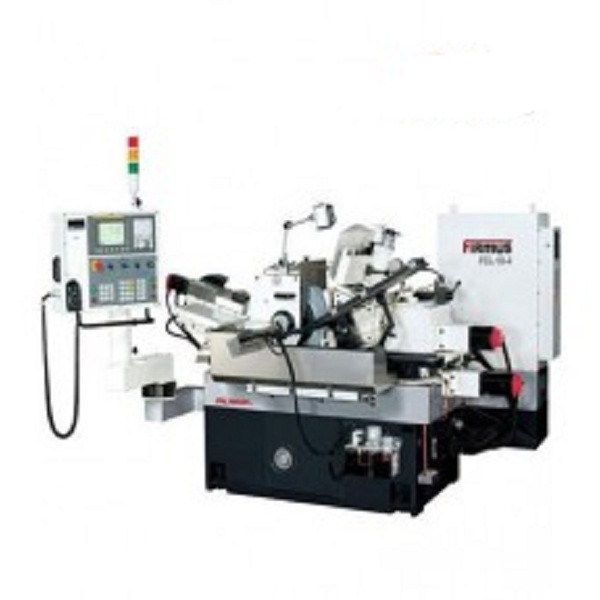

PALMARY CNC Centerless Grinder

Model : FCL-18-4

Make : PALMARY

Description : Model FCL-18 grinding Wheel Standardgrinding range(Dia.) Ø1~Ø60mm Capacity increases with special arrangement Ø40~Ø150mm Grinding whell size(O.D. x width x I.D.) Ø455x205xØ228.6 Grinding wheel speed 1500rpm Grinding wheel motor 15HP x 4P Regulating Wheel Regulating Wheel size(O.D. x width x I.D.) Ø255x205xØ111.2 Regulating wheel speed 10~300rpm(Variable) Regulating wheel motor 3.5KW servo motor Regulating wheel tilt angle +5°~-3° Reagulating wheel swive angle ±5° Handwheel Graduation Upper slide feed graduation 3.5mm/'rev. 0.005mm/graduation Upper slide micro-feed graduation 0.1mm/'rev. 0.001mm/graduation Lower slide feed graduation 9mm/'rev. 0.05mm/graduation Lower slide micro-feed graduation 0.2mm/'rev. 0.001mm/graduation Trimming device graduation 2mm/'rev. 0.01mm/graduation Drive Motors Hydraulic pump motor 1 HP x 4P Coolant pump motor 1/4HP x 2P Net weight 2900kgs Gross weight 3200kgs FEATURES 1. Rigid Machine Structure (1) The machine structure is manufactured from high quality Meehanite cast iron, heat treated and stress relieved before machining. (2) Slideways are high frequency hardened and precision ground. Maximum material stability for deformation-free and outstanding wear resistance. 2. Hydraulic Cooling Device (1) The lubrication system for bearings on grinding wheel spindle, regulating wheel spindle and hydraulic system are driven by the same hydraulic pump. A cooling fan is equipped for effectively reducing oil temperature. 3. Pressure Switch (1) When starting the grinding wheel and regulating wheel spindle, this pressure switch allows starting only when oil enters into beanings thereby providing safety protection for the spindle bearings. Regulating wheel is driven by AC servo motor. 4. Lubrication System (1) The automatic lubricator provides lubrication to the grinding wheel spindle. (2) All slideways are lubricated by a centralized lubrication system, ensuring proper lubrication and feeding accuracy. 5. Slide Table (1) Upper slide swiveling is easy and accurate to adjust for making the machine suitable for infeeding grinding. Also, it allows grinding for a varied diameter of workpieces. The Upper slide with +5°~ -5° swiveling allows taper grinding by using infeed grinding mode. (2) With thrufeed grinding, the upper slide provides a surface contact adjustment between the workpiece and grinding wheel. Swiveling adjustment range is +5°~ -3°. (3) Dovetailed slideway on the upper slide features smooth and accurate feeding and is lubricated by a centralized lubricator. (4) Lower slide moves on “ ? ” shaped and double-wedged ways. The slideways are hardened and precision ground. They feature smooth movement and properly protected to prevent dust from entering. Micro. feed adjustment unit is 0.001 mm to meet high accuracy requirements for all workpieces. (5) The slideways on the slide unit are coated with Turcite-B for superior wear resistance and smooth movement. 6. Dresser for regulating wheel & Grinding Wheel (For l Axis) (1) Dresser structure is manufactured from alloy cast iron and is hear treated for wear resistance. (2) Hydraulically operated dressing motion. (3) Variable dressing speed. (4) Dresser stand for regulating wheel can be adjusted to suit workpiece requirements, assuring high cylindrical accuracy. 7. Lubrication Oil Recycle (1) Lubrication oil for all slideways flow return through brass tubes to oil collecting tanks. This not only helps to maintain a clean working area, but also meets ISO-14000 environmental protection requirements. 8. Stable Grinding Wheel Auto Dressing Unit (1) The lower slideways of the grinding wheel dressing unit is of a concave dovetail structure. This combines with extra large sideways for greatly upgrading the stability of the grinding wheel unit.

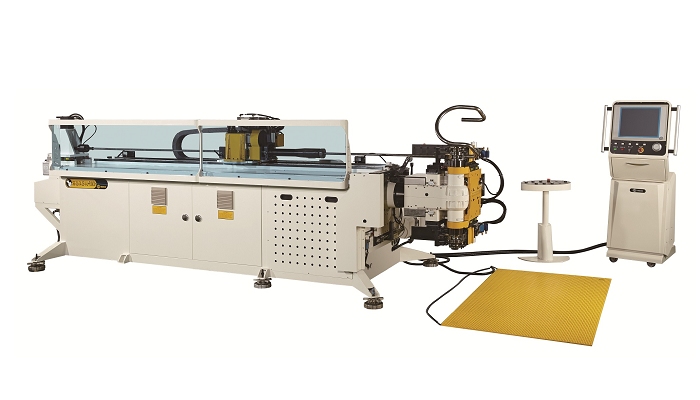

SOCO-CNC TUBE BENDER

Model :

Make : RAVIK ENGINEERS-SOCO

Description : Right and Left Tube Bender The new SOCO CNC Tube Bender which is equipped with Left and Right Bending Technology for maximum flexibility and minimal interference. The " U type" pipe bender is especially suitable for complex parts and shapes, such as automotive head rest, fuel lines, heating and cooling systems. This pipe bender is equipped with 5 ~ 10 electric CNC axes, 2 ~ 3 bending stacks and uses SOCO's unique DGT technology ( Direct Gear Transmission ). • Left and Right Tube Bending capabilities in the same cycle. • DGT technology - Gear Transmission Bending for Highest Speed and Accuracy. • Easy Programming - Setup a part in the same way as a single directional bend. • Elongated bending neck for maximum working area. • All Electric _ 7 Electric servo controlled axes tube bender. • 2 speeds + Early mandrel extraction. • Automatic Groove Detection System for ensure the tube in right direction before bending (Optional and Depend on ). • Automatic mandrel lubrication. • Touch Screen with IPC ( Industrial PC ). • Multi-stacks and Multi-Radius Pipe Bending Machine. • Independent pressure die system for each bending stack. • Optional Automatic Loaders (AF) and Automatic Unloaders (AUL) ,and Punching after tube bending.

Press-Mechanical

Model : SAG-SAG4 SERIES

Make : SEYI ( SAKAR ENGINEERS )

Description : Capacity: 300 to 1200 ton; Stroke Length: 300 to 1200 mm; This design makes it easy to integrate automation. It has excellent performance in automatic feed, progressive die or single stroke application. It's Eccentric gears drive excellent for deep drawing and a verity of other stamping application and Plunger guide reduce lateral force during slide movement for better accuracy.

PRESS – HIGH SPEED

Model : GH-SERIES

Make : FAIR OAKS (Sakar Engineers)

Description : Capacity: 30 to 300 Ton; Stroke Length: 30 to 30 mm; HI- SPEED PRECISION PRESS feature high speed, precision safety, and durability. The quality control System is staffed with professionals, and fully equipped with Various sophisticated inspection to ensure that high standards are maintained throughout every step of manufacturing.

PRESS-SERVO

Model : SD-SERIES

Make : SEYI ( SAKAR ENGINEERS )

Description : Capacity: 80 to 500 mm; Stroke Length: 180 to 350 mm; It save energy and Ultimate formability, Maximized energy efficiency also Amazing forming performance Progressive tooling with swinging ( Pendulum ) Motion; It has leading formability, best protection, optimum safety.

Press-Mechanical

Model : SN-SERIES

Make : SEYI ( SAKAR ENGINEERS )

Description : Capacity: 25 to 350 mm; Stroke Length: 80 to 350 mm; It has feature with high torque, low noise wet clutch and brake. It has rigid frame with less deflection. It's high accuracy transmission gears and high rigidity crank ensure press long life and accuracy. The force lubrication system with default monitor ensure the operation reliability. The design is user-friendly and all-function electric control System provide high automation capability.

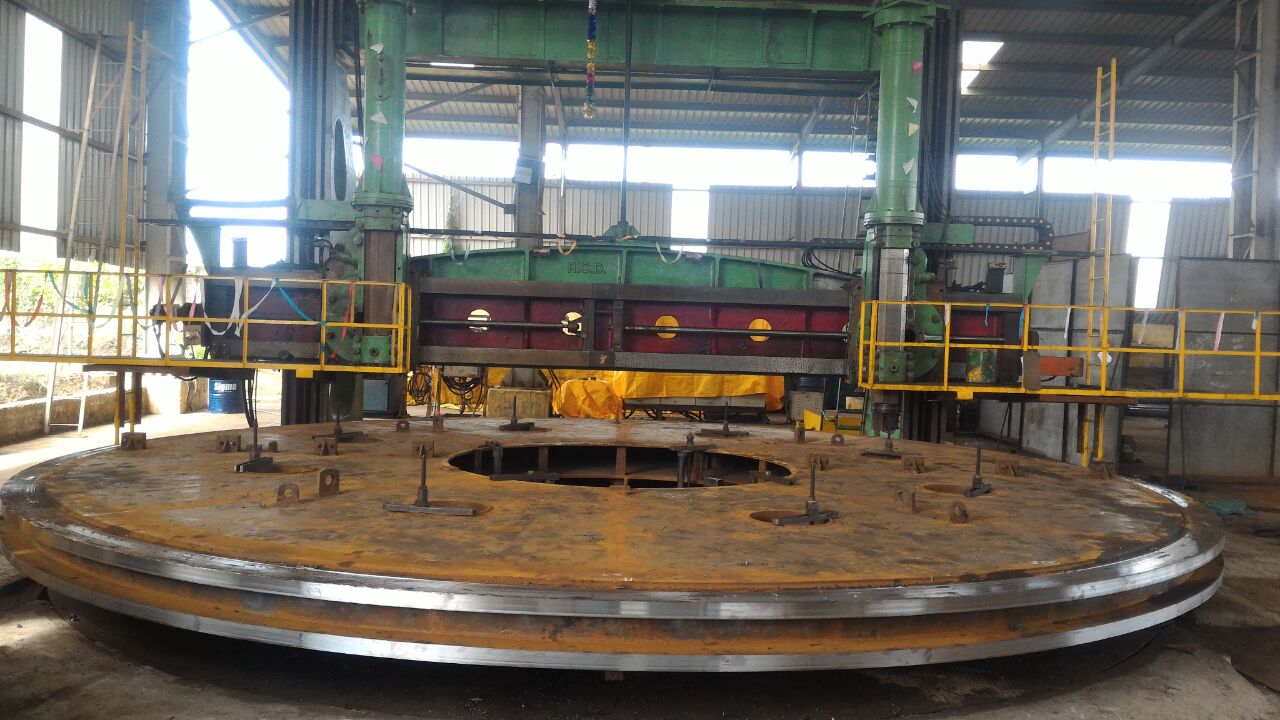

VTL MACHINE

Model :

Make : RICHARD CRAVEN

Description : VTL MACHINE- DOUBLE COLUMN, 2 RAM - VERTICAL TURNING LATHE- SWING DIA-13METRE; CHUCK DIA- 5.5 METRE; HEIGHT- 3.0 MTR; FANUC CNC CONTROL
